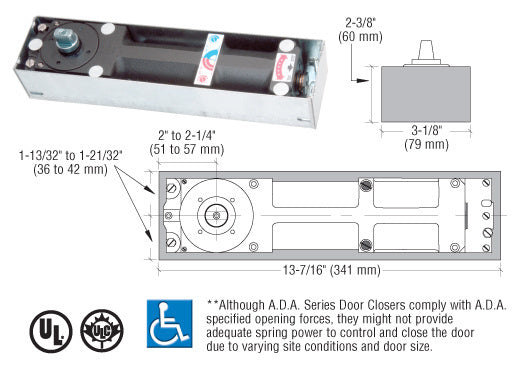

Dormakaba® Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case

• 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
• Interchangeable Spindle Heights
• Selective Multi-Point Hold Open Position
• Variable Delayed Action
• 25 Year Limited Warranty
• UL Listed

The Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.

NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
