CRL Brushed Stainless Cabinet Door Pivot Hinges
Roll over image to zoom in Click on image to zoom
CRL Brushed Stainless Cabinet Door Pivot Hinges

CRL Brushed Stainless Cabinet Door Pivot Hinges

CRLSKU: 12PVH
Finish/Color:: Brushed Stainless Steel
Price:
$97.98
 More payment options

Description

Product Details
Depth (Inches): 1/8
Finish/Color: Brushed Stainless Steel
Glazing Thickness (Inches): 3/16 To 1/4
Includes: Vinyl Macaroni On Screws And Drilling Template. Two per pack
Length (Inches): 2-3/8
Material: Stainless Steel
Maximum Door Width (Inches): 15
Mounting Hole Diameter (Inches): 3/8
Weight Capacity (Pounds): 22
Product Overview
  • For 3/16" to 1/4" (4.7 to 6.3 mm) Thick Glass
  • Requires Two 3/8" (10 mm) Holes Per Hinge

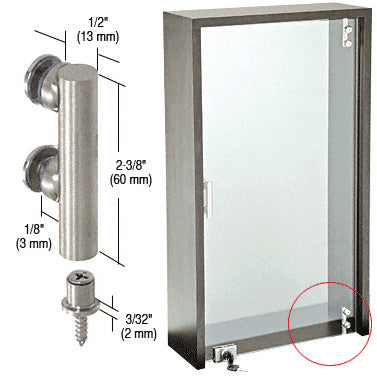

These CRL Brushed Stainless Pivot Hinges are unique in design and will provide a contemporary, high tech look to your cabinet. Installed into wood at both cabinet top and bottom, these free-swinging hinges are an excellent choice for many cabinet applications. The maximum recommended door width is 15" (381 mm) and the maximum weight should not exceed 22 lbs. (10 kg). Allow 1/8" (3 mm) clearance between glass door and cabinet. These pivot hinges match the design of our cabinet door pivot pull, Cat. No. 12PVP. Includes vinyl macaroni on screws and drilling template. Comes two per pack.

Installation Instructions
Showcase Door Hinge Glass Cut

Specifications

Downlodable Documents
