CRL Dry Glazed Frameless Glass 6' BP-Style Double Door Complete Entrance Kit - without Lock

• Door Only or Complete Entrance Kits Available
• 3' Single Door or 6' Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
• Net Door Width is 35-3/4" (908 mm)

CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 1/2" (12 mm) tempered glass.

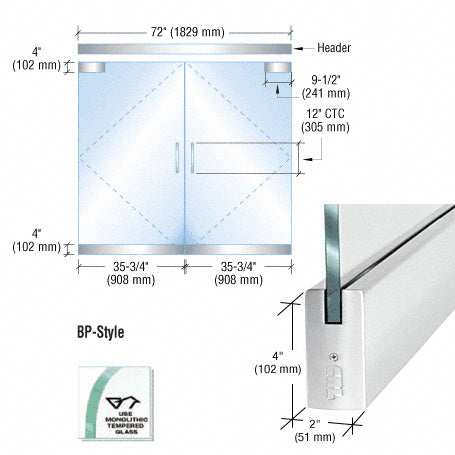

This kit utilizes our patented dry glaze rails. It is a 'BP' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) fully tempered glass. It requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle, and a notch for the top patch. Net door width is 35-3/4" (908 mm).

Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Without Lock Kits Include:

Two DR4S Series Dry Glaze Top Patch Rails

Two DR4S Series Dry Glaze Rails

Two Model 20104M20 Jackson® Overhead Door Closer Sets

Two CRL8010AS Closer Arms

Two CRL8010DP Bottom Pivots

Two CRL8010FS Mounting Clips

Two Model CM12X12 Pull Handles

One Model DCH4 72" Header
